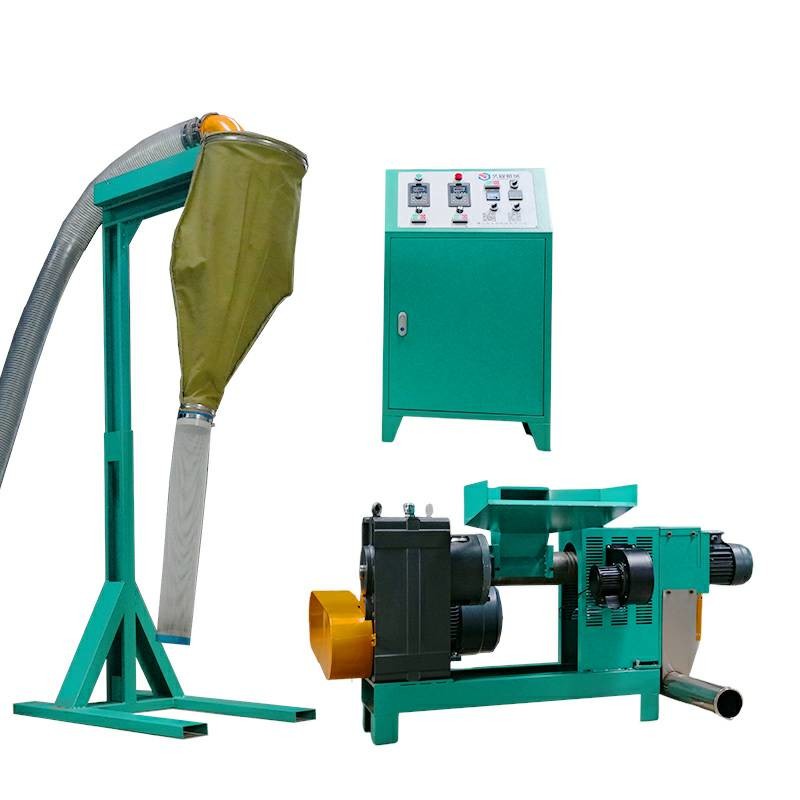

Polypropylene PP Plastic Film Pelletizing Machine For Waste Recycling
Feeding:
As standard design, plastic scraps such as film, filament, raffias conveyed into the compacting room through belt conveyor; to handle rolls’ scraps, roll hauling off device is an optional feeding method.
Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt or roll hauling off is fully automatic based on how full the compactor’s room is. Metal detector can be combined with belt conveyor, and can interlock with control system, to warn and stop the system, in case that metal is found in feeding section.
Shredding and Cleaning Plastic:
Two-stage tandem exhaust granulation unit is widely used in the recycling and granulation of various types of plastics such as (LDPE), (HDPE), (PP).
Adopt automatic temperature control, electromagnetic heating, less electricity consumption, no pollution, high degree of automation
The special design of the exhaust port can effectively remove the moisture and volatile gas generated during the material melting process
Adopt advanced low-noise hard tooth surface belt forced lubrication reducer to ensure that the main engine adapts to high-speed continuous operation
Wet pulverization enhances the cleaning effect of waste plastics
The blade is an alloy steel blade that can be re-sharpened for durability.
Sealed design, the casing body is all welded with thick steel plates.
The body adopts a separate design, which is easy to repair and clean;
Double-layer structure, equipped with sound insulation materials, the noise is very low;
The drive equipment adopts the medium-speed motor, low speed, and low energy consumption;
The motor is equipped with an overload protection device and a power supply chain protection system;
| Parameter | |
| Model | JXDW-150 |
| Total Power | 34KW |
| Output | ≈200kg/h |
| Power Supply | AC380V 50Hz TN-S |
| Dimension | 2450x1050x1500 |
| Weight | ≈1500kg |
| Screw | 150 |
| Reducer | 250 |
| Pelletizing Motor | 1.5W |
| Extrusion Motor | 45KW |
| Inverter | 45KW+1.5KW |
